Spain, 23.10.2016. Solution

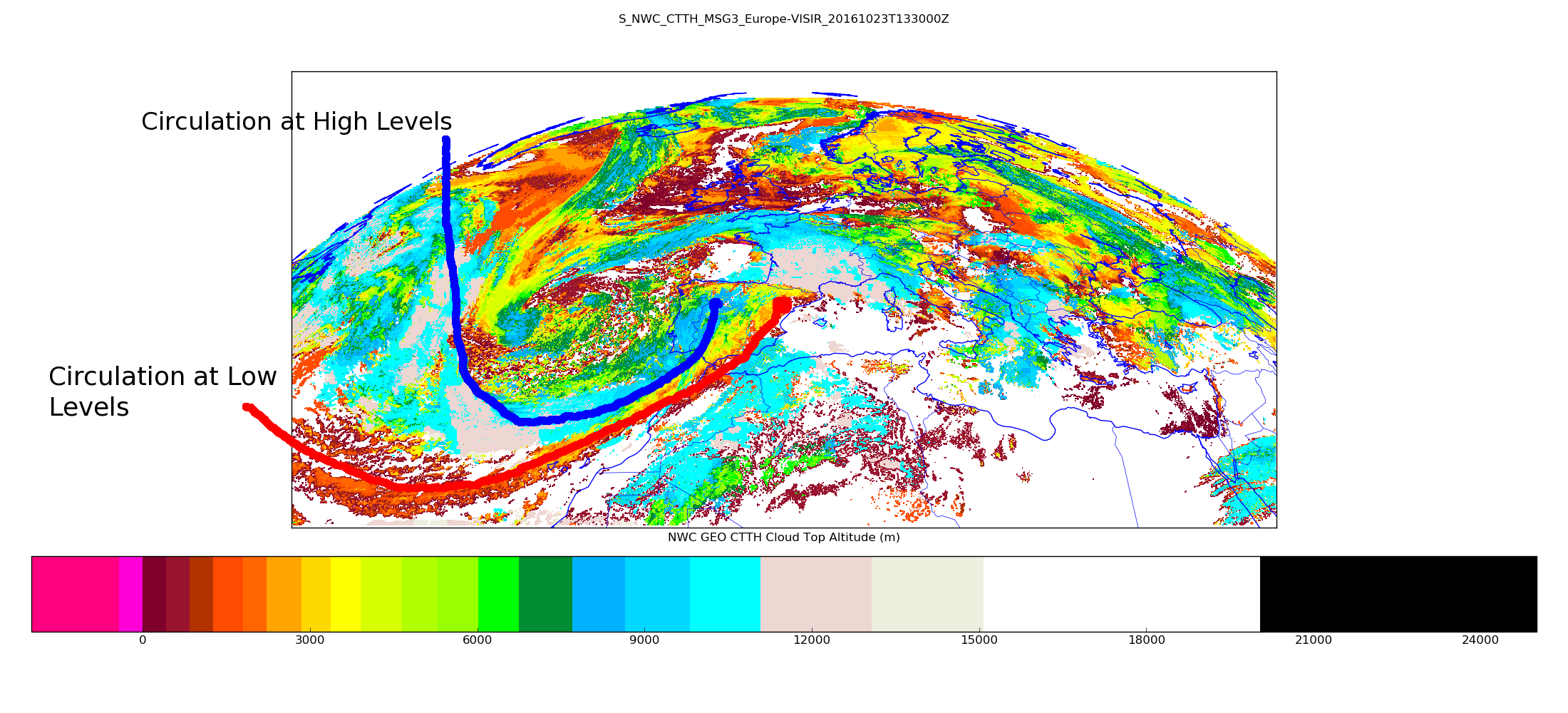

Circulation at different levels
1. Circulation at different levels is well captured by the CTTH alti product
Wind Gusts
2. Wind gusts seem to have be consistent with the model. What the model predicted with respect to winds has been confirmed with weather stations (see below).

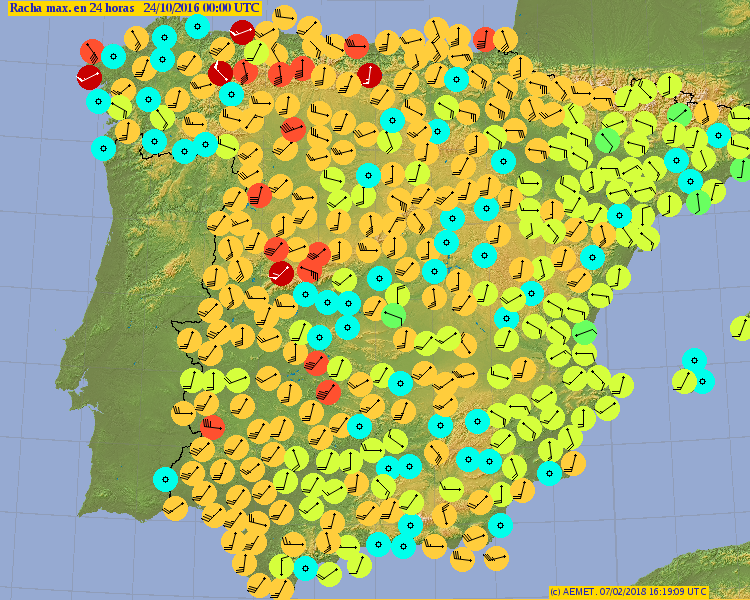

Wind Gusts from stations
Mositure River
3. Mositure river from iSHAI bl is consistent with the model.

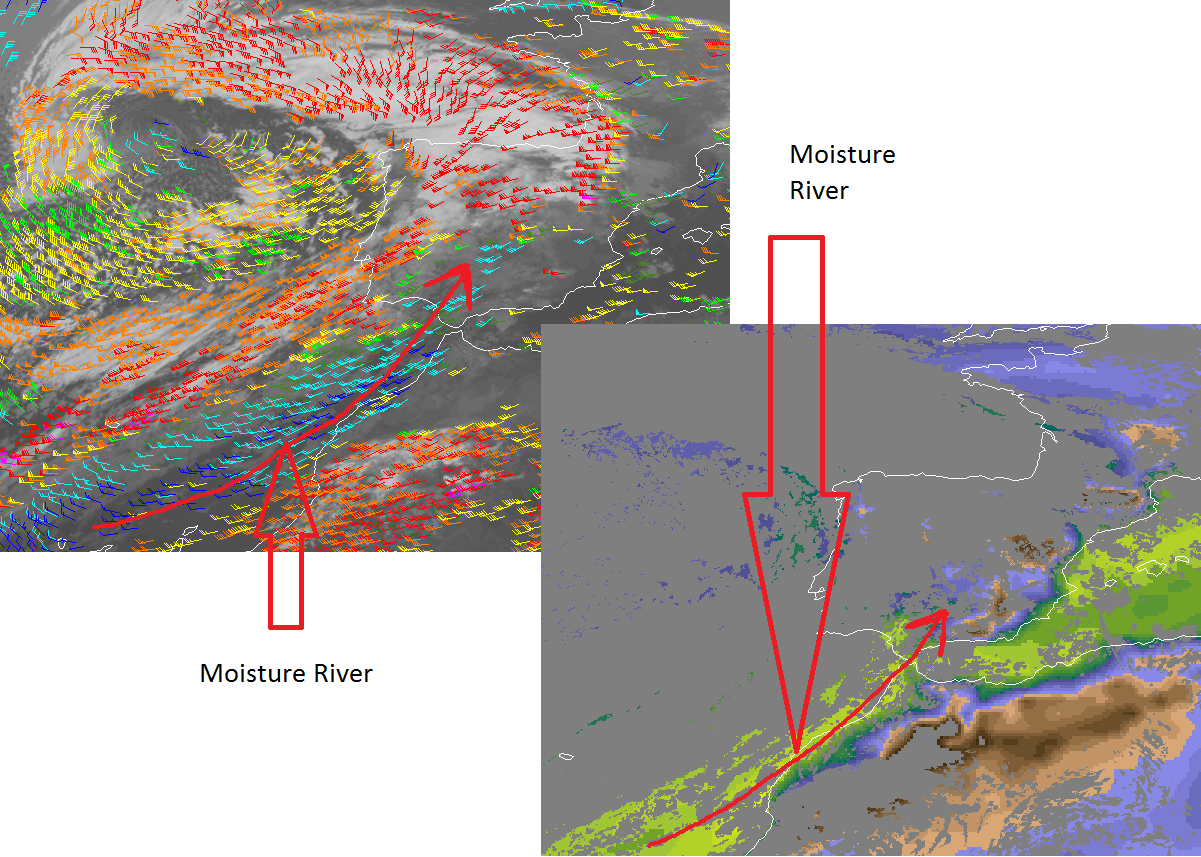

Mositure River as seen by NWC SAF Products
Precipitation
4. Precipitation from satellite covers a much larger area than predicted from the model (SE, NW and central mountains in Spain). Rain gauges confirm what was observed from satellite.

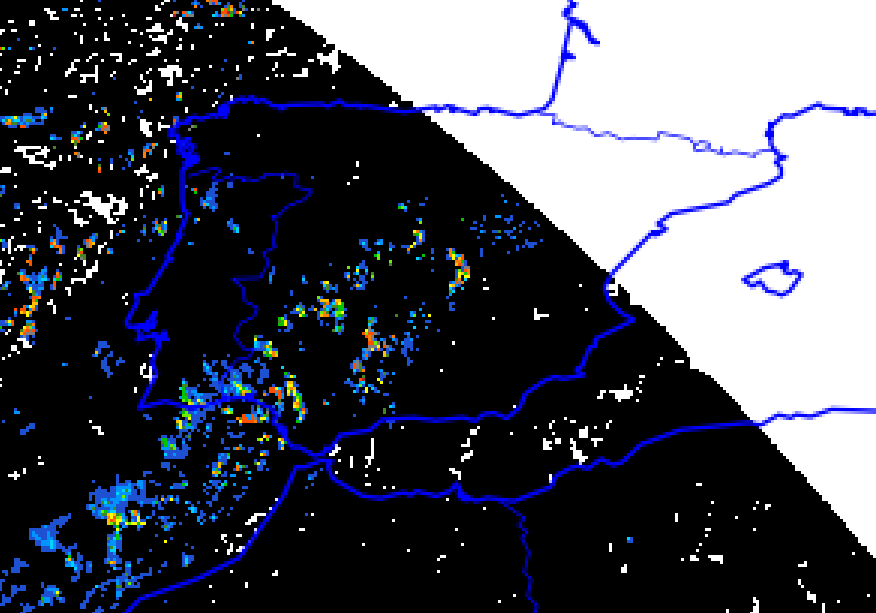

Cr-Ph Poduct at 1500Z

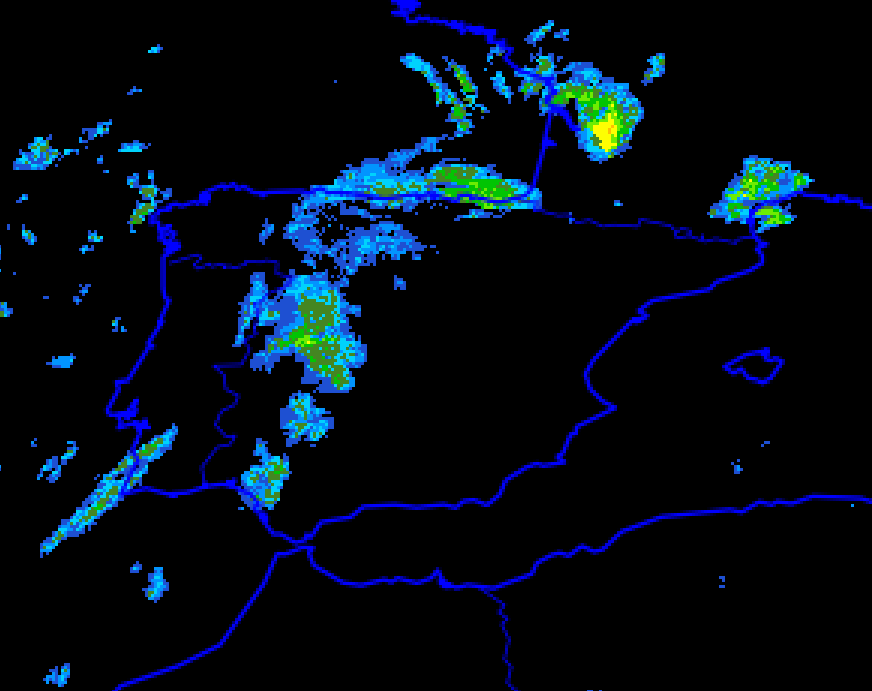

CRR Product at 2145Z

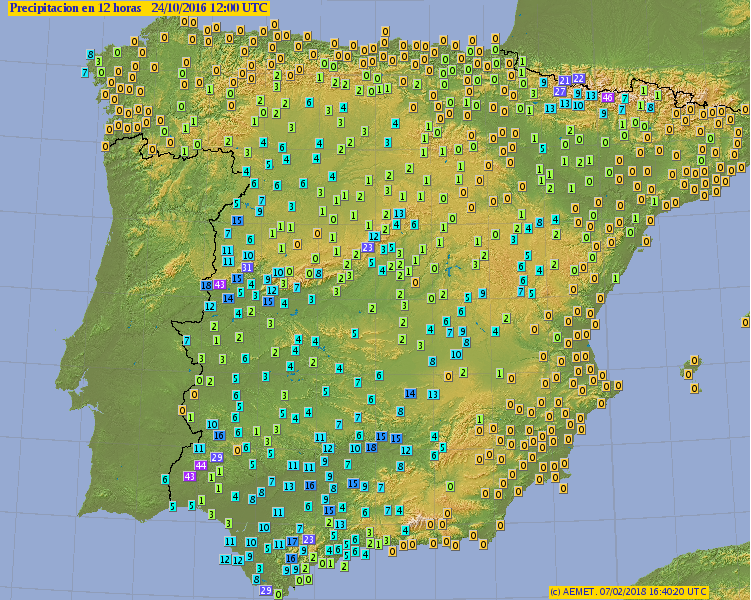

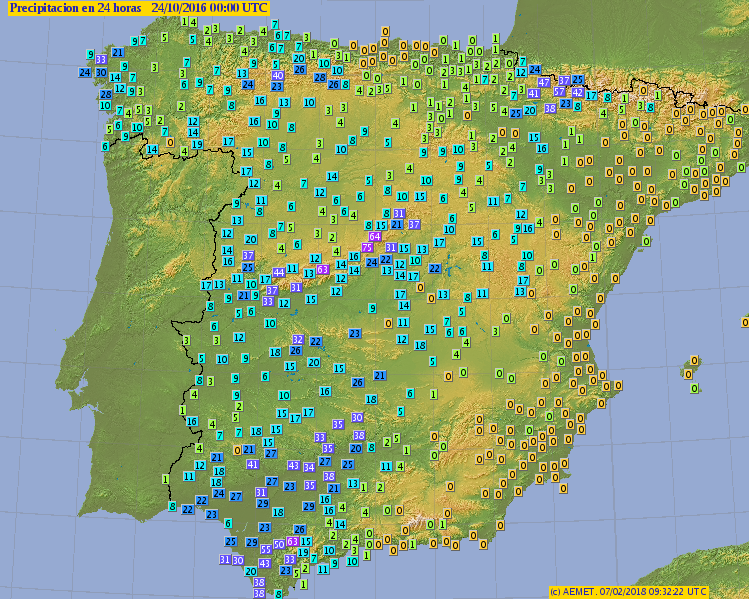

Precipitation from Gauges
