The images corresponding to the 8th July 2019 from SEVIRI
instrument on MSG-4 are available in the video file in the link
below:
Combination
of RGBs images, iSHAI fields and ECMWF fields (collocated
with MSG images using PGE00 tool)

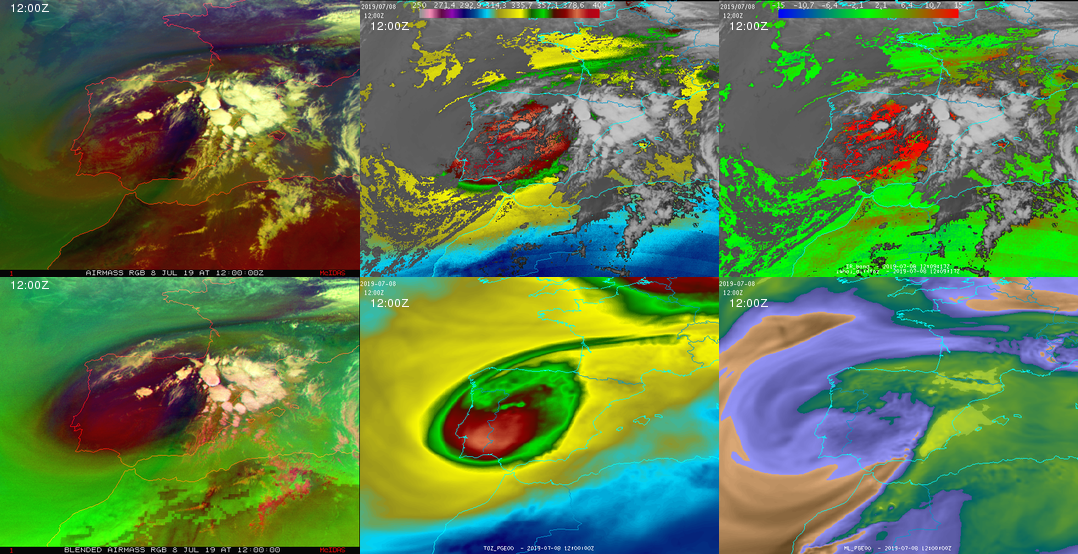

Example at 12 UTC: Loop of airmass RGB (top
left), iSHAI TOZ (top center), iSHAI diffTOZ
(top right),
blended (real&synthetic) air mass RGB (bottom left), ECMWF TOZ (bottom center),
ECMWF ML (bottom right)
from 8 July 2019 produced from MSG-4.
To download the video AVI file with the loop click
use this link.
In the improved blended
(real&synthetic) air mass RGB in Green component is used a
formula with the difference between the BTs of RTTOV and real
BTs in the IR9.7 and in the IR10.8 channel. See more information
in this link.
